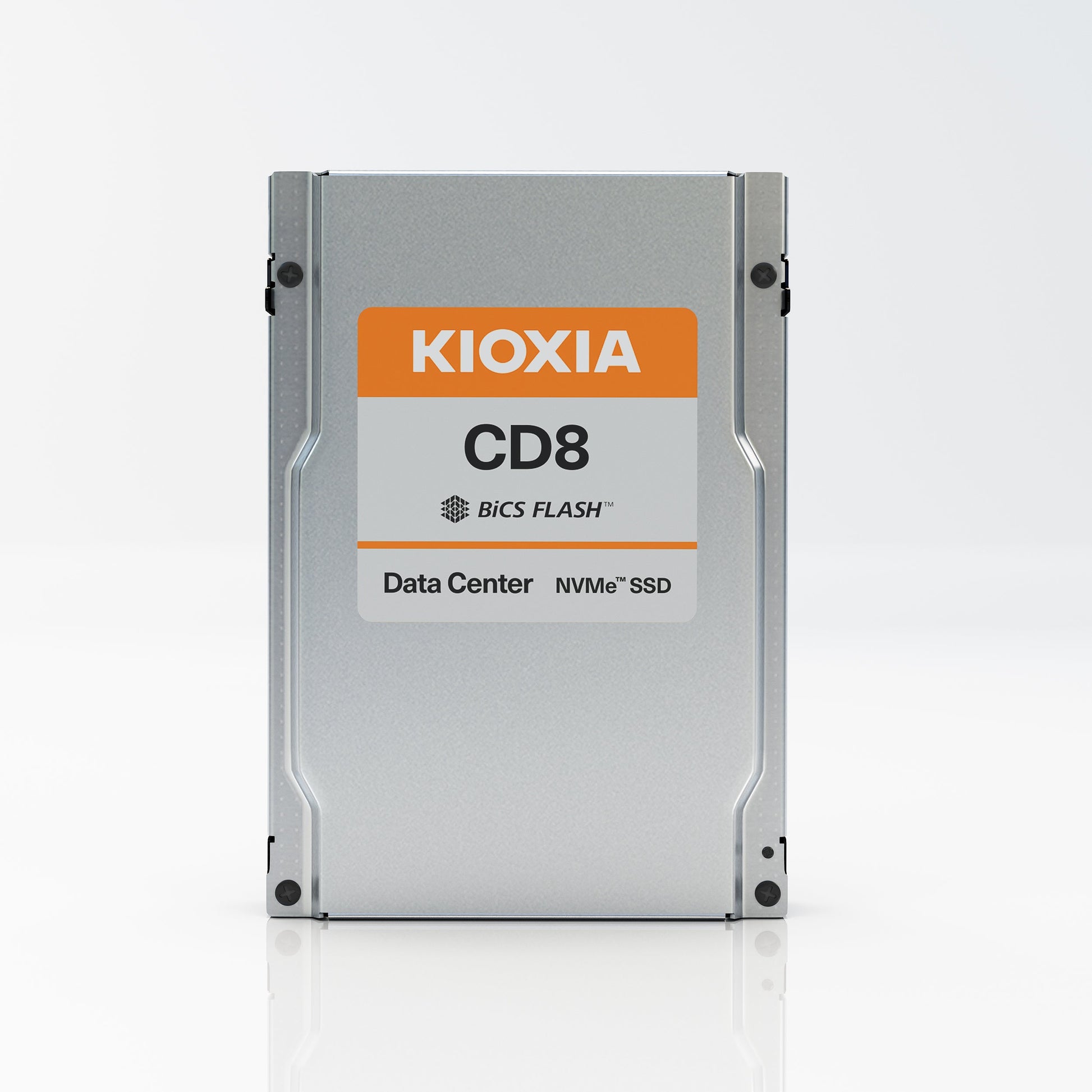

KIOXIA CD8-V (2.5") - 0.8TB Mixed Use 3 DWPD PCIe 4.0 SSD
Discover the KIOXIA CD8-V Series 0.8TB SSD, a cost-effective enterprise NVMe SSD for entry-level data centers. Equipped with PCIe 4.0 and 112-layer BiCS FLASH TLC, this 15mm 2.5" SSD provides up to 7,200 MB/s sequential read and 1,250K IOPS random read, with 3 DWPD endurance and power loss protection (PLP). Ideal for IoT applications and enterprise storage, it supports Base, SIE, or SED security options.
KIOXIA /
0.8TB SSD2.5"CD8-V-SeriesData CentreMixed UseNVMe SSDPCIe 4.0
In Stock
Product Specification for KIOXIA CD8-V (2.5") - 0.8TB Mixed Use 3 DWPD PCIe 4.0 SSD
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 7,200 MB/s |
| Sustained 128 KiB Sequential Write | 1,800 MB/s |
| Sustained 4 KiB Random Read | 1,000K IOPS |
| Sustained 4 KiB Random Write | 160K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 11 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 3 |
Dimensions
| Thickness | 15 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
Environmental
| Temperature (Operating) | 0 °C to 75 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
