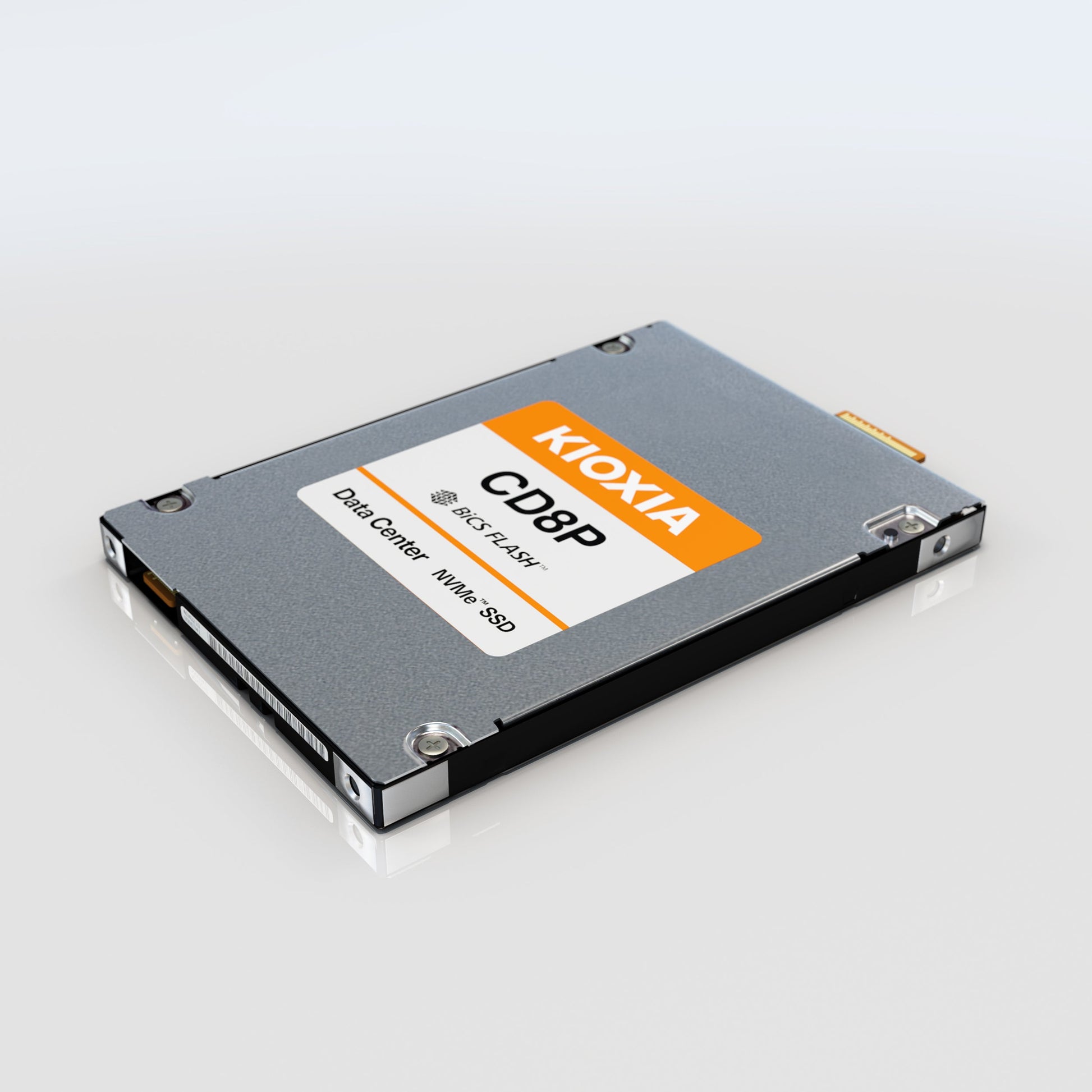

KIOXIA CD8P-R (E3.S) - 2TB Read Intensive 1 DWPD PCIe 5.0 SSD
The KIOXIA CD8P-R Series (E3.S) 2TB SSD is a read-intensive NVMe drive engineered for enterprise and hyperscale data centers. Featuring PCIe 5.0 and BiCS FLASH TLC, it delivers exceptional performance with up to 2,000K IOPS (random read) and 12,000 MB/s sequential read speed. With 1 DWPD endurance and power loss protection (PLP), this SSD is perfect for cost-effective storage in virtualised environments and small-scale online transaction processing (OLTP). Its compact E3.S form factor ensures high-density deployment, supported by Base, SIE, or SED security options.
KIOXIA /
2TB SSDCD8P-R-SeriesData CenterE3.SNVMe SSDPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CD8P-R (E3.S) - 2TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance (Up To)
| Sustained 128 KiB Sequential Read | 12,000 MB/s |
| Sustained 128 KiB Sequential Write | 3,500 MB/s |
| Sustained 4 KiB Random Read | 1,600K IOPS |
| Sustained 4 KiB Random Write | 150K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 18 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 112.75 mm ± 0.4 mm |
| Weight | 110 g Max |
Environmental
| Temperature (Operating) | 0 °C to 76 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
