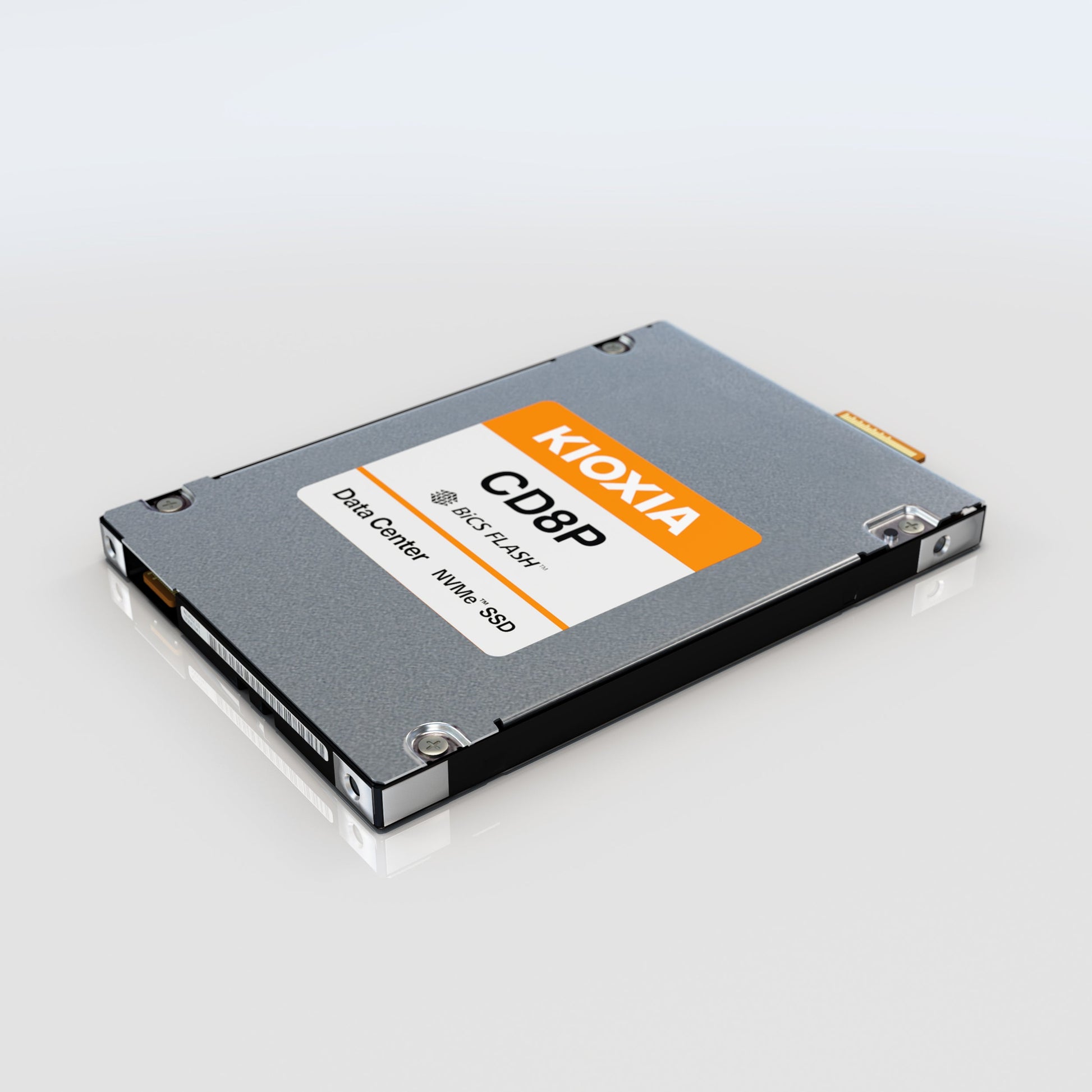

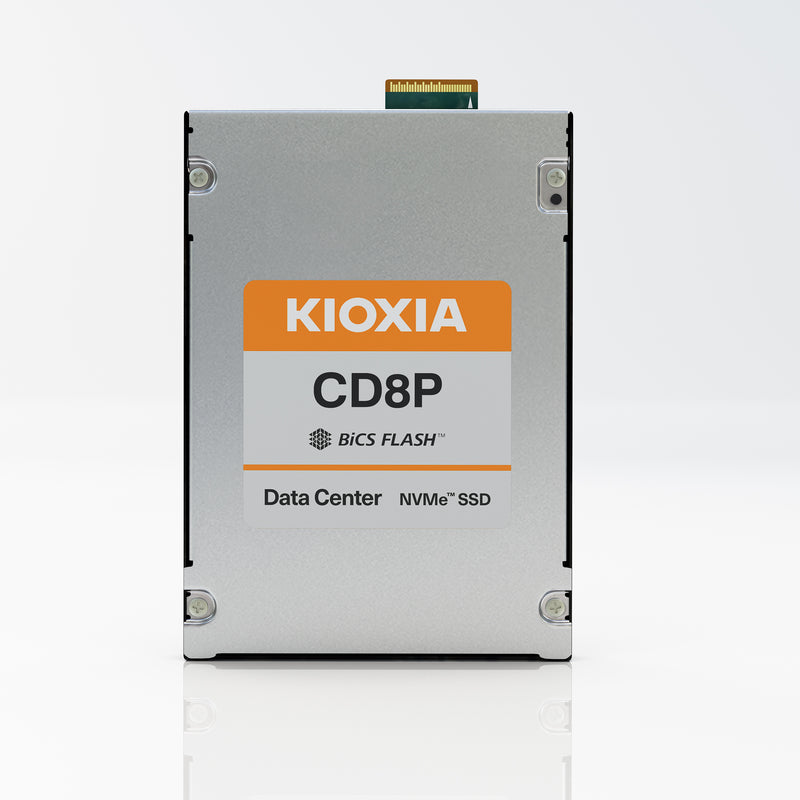

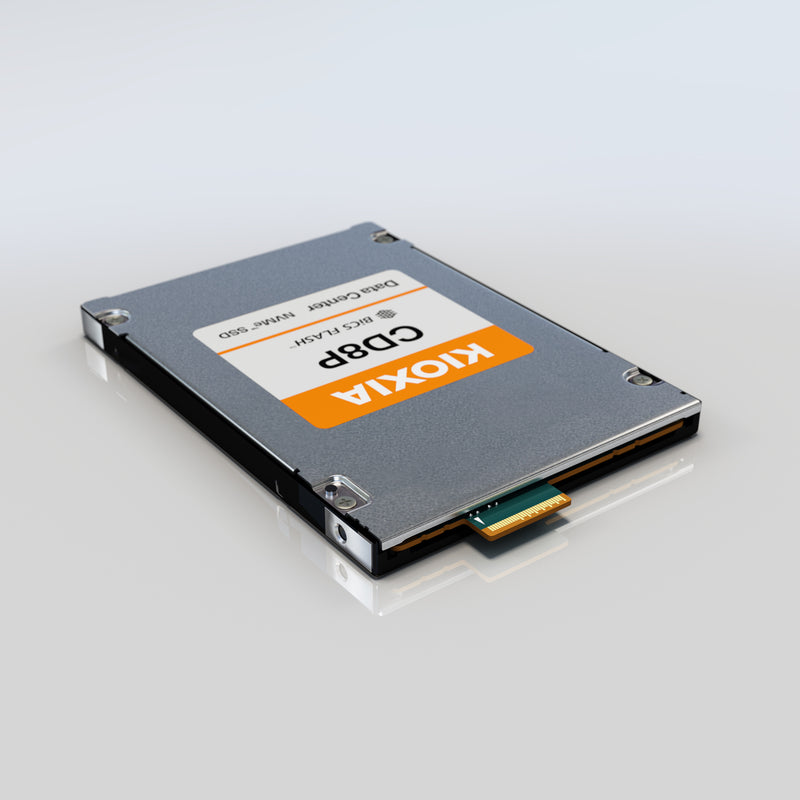

KIOXIA CD8P-R (E3.S) - 8TB Read Intensive 1 DWPD PCIe 5.0 SSD
The KIOXIA CD8P-R Series (E3.S) 8TB SSD is a read-intensive NVMe drive tailored for high-density enterprise and hyperscale storage. Equipped with PCIe 5.0 and BiCS FLASH TLC, it offers up to 2,000K IOPS (random read) and 12,000 MB/s sequential read speed. With 1 DWPD endurance and power loss protection (PLP), it’s ideal for streaming media, IoT, and large-scale virtualised environments. Available with Base, SIE, or SED security, this E3.S SSD maximises storage efficiency.
KIOXIA /
8TB SSDCD8P-R-SeriesData CenterE3.SNVMe SSDPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CD8P-R (E3.S) - 8TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance (Up To)
| Sustained 128 KiB Sequential Read | 12,000 MB/s |
| Sustained 128 KiB Sequential Write | 5,300 MB/s |
| Sustained 4 KiB Random Read | 2,000K IOPS |
| Sustained 4 KiB Random Write | 200K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 23 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 112.75 mm ± 0.4 mm |
| Weight | 110 g Max |
Environmental
| Temperature (Operating) | 0 °C to 73 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
