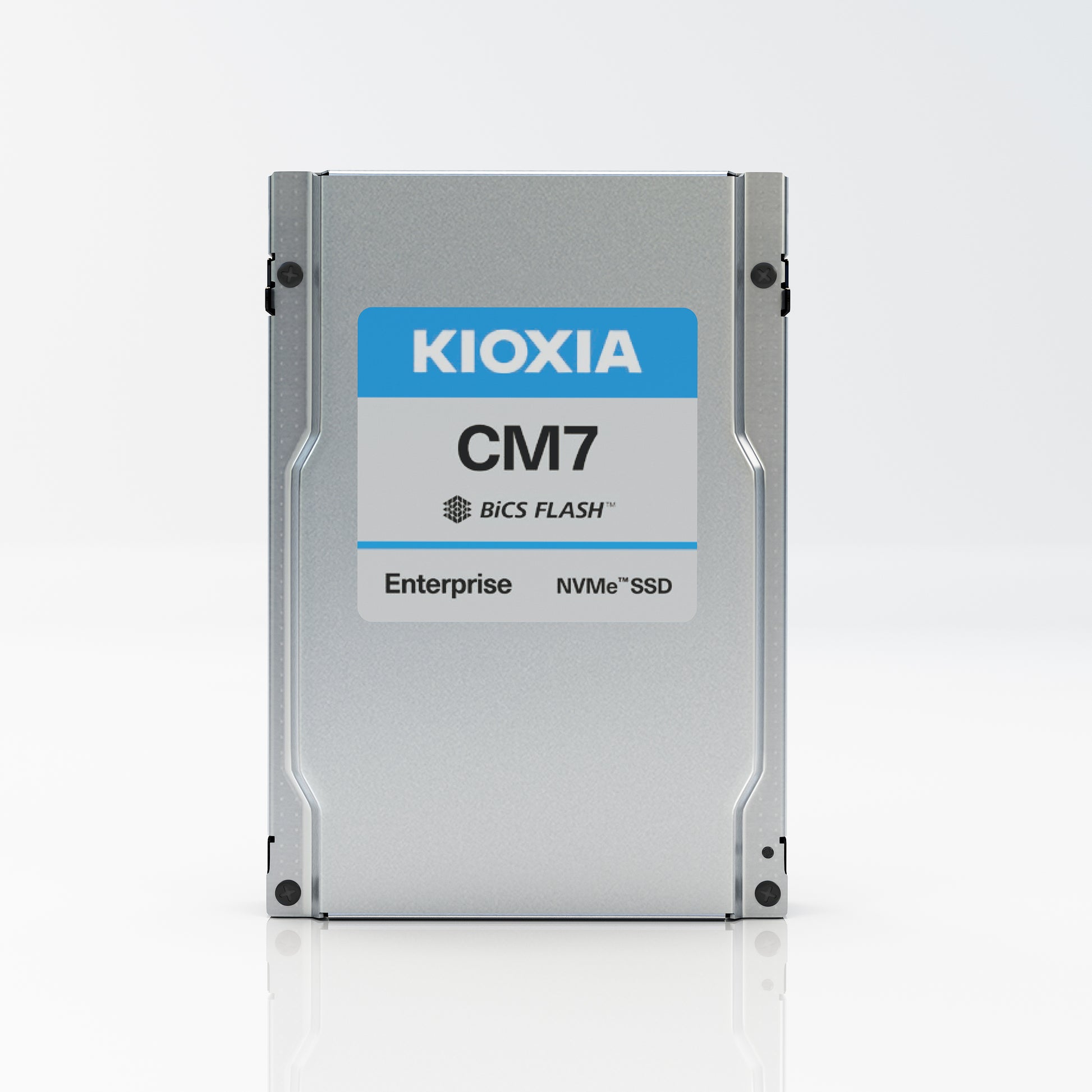

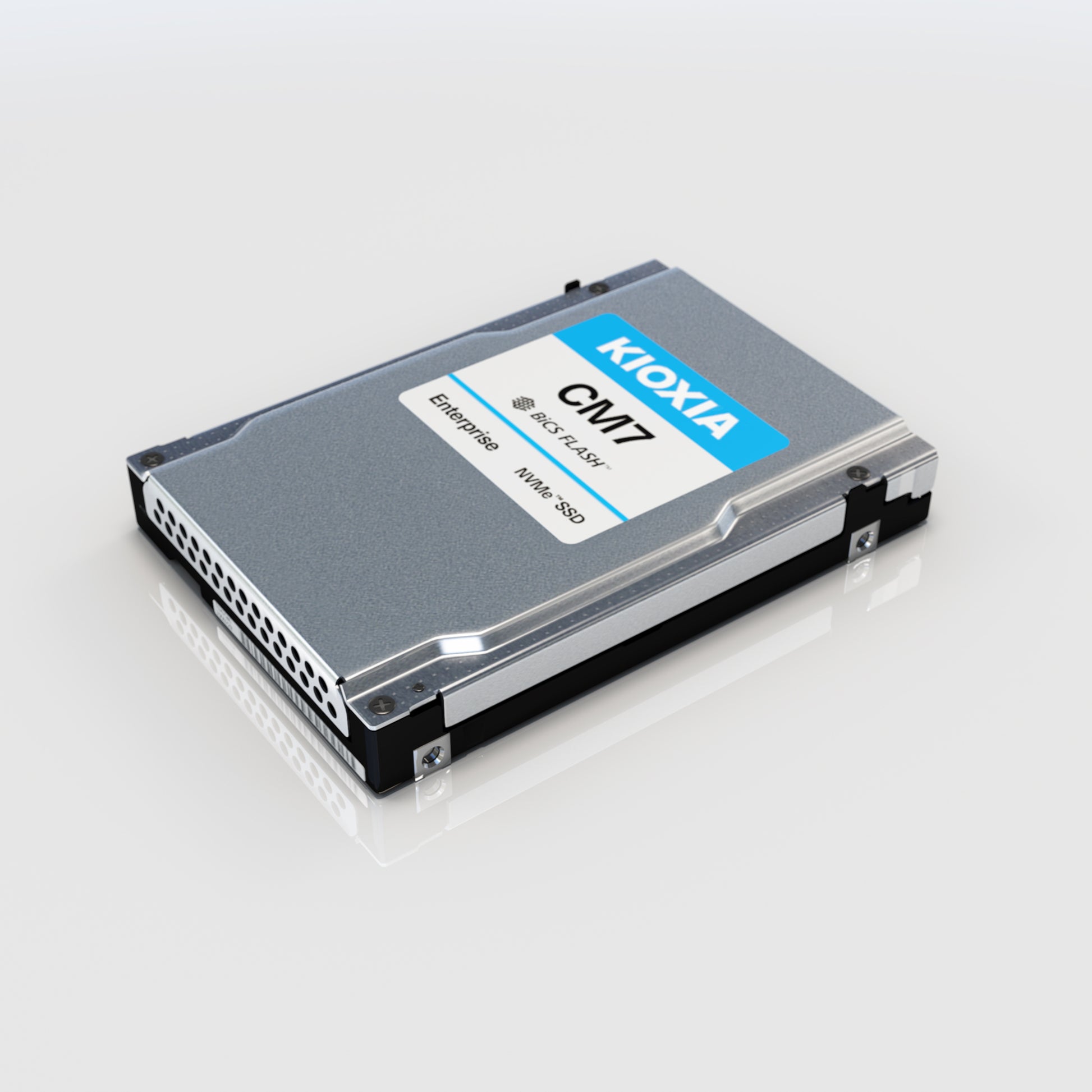

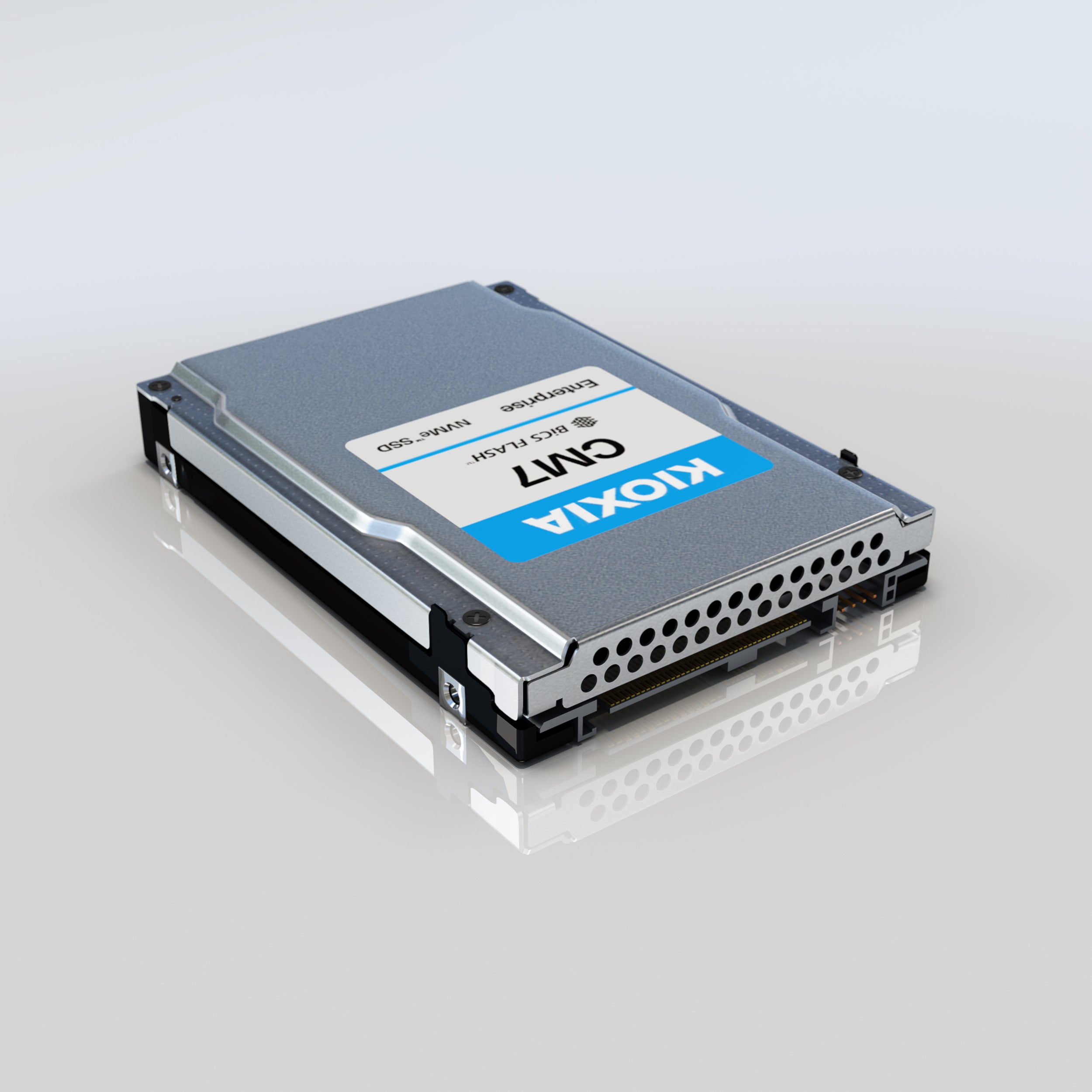

KIOXIA CM7-R (2.5") - 3.84TB Read Intensive 1 DWPD PCIe 5.0 SSD

Read-Intensive 2.5" SSD

2.5" (15mm)

KIOXIA

Optimise your infrastructure with the KIOXIA CM7-R Series 3.84TB SSD, a dependable enterprise NVMe SSD for mid-tier data centers. Equipped with PCIe 5.0 and NVMe 2.0 with 112-layer BiCS FLASH TLC, this 2.5" SSD delivers up to 14,000 MB/s sequential read and 3,500 MB/s sequential write speeds, with 2,700K IOPS random read performance. With 1 DWPD endurance and power loss protection (PLP), it suits big data analytics and virtualised environments. Dual-port architecture provides high availability for demanding enterprise applications.

View Product Brochure

SELECTED MODEL VARIATION:

Base SIE SED FIPS SED

Product variants:

In Stock

£555.96 Ex. VAT

Product Specification for KIOXIA CM7-R (2.5") - 3.84TB Read Intensive 1 DWPD PCIe 5.0 SSD

Performance in Single Port (1x4) Mode (Up To)

Sustained 128 KiB Sequential Read	14,000 MB/s
Sustained 128 KiB Sequential Write	6,750 MB/s
Sustained 4 KiB Random Read	2,700K IOPS
Sustained 4 KiB Random Write	310K IOPS

Power Requirements

Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	25 W typ.
Power Consumption (Ready)	5 W typ.

Reliability

MTTF	2,500,000 hours
Warranty	5 years
DWPD	1

Dimensions

Thickness	15.0 mm +0 / -0.5 mm
Width	69.85 mm ± 0.25 mm
Length	100.45 mm Max
Weight	130 g Max

Environmental

Temperature (Operating)	0 °C to 76 °C
Temperature (Non-operating)	-40 °C to 85 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating)	9.8 km/s² ( 1,000 G ) ( 0.5 ms )

PRODUCT HIGHLIGHTS

Fast, efficient, and reliable performance.

Ultra-Fast PCIe® 5.0 Speeds

Enjoy faster data transfer and system responsiveness.

Lower Power, High Efficiency

Delivers strong performance with reduced energy use.

24x7 Enterprise Reliability

Built to withstand constant, demanding workload environments.
