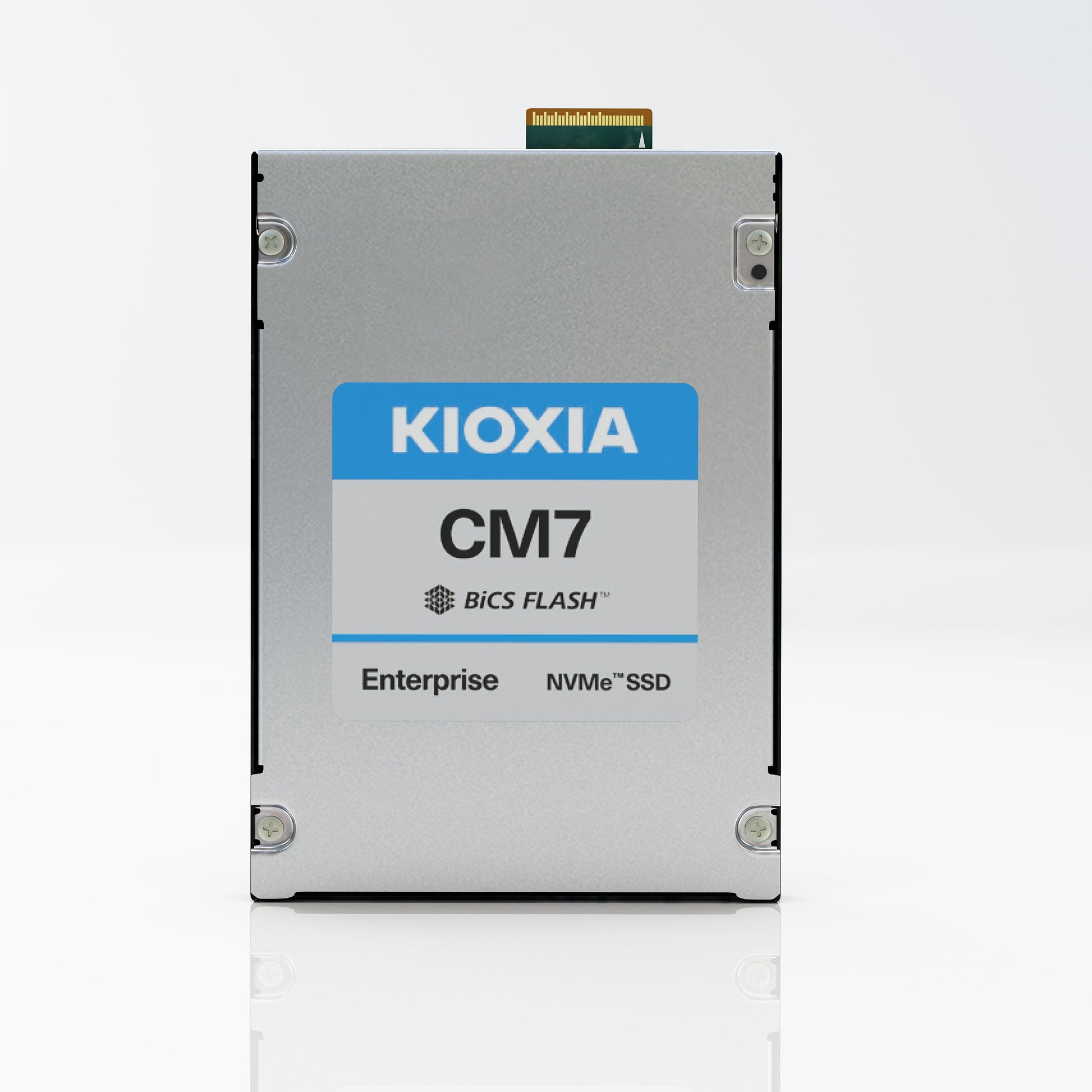

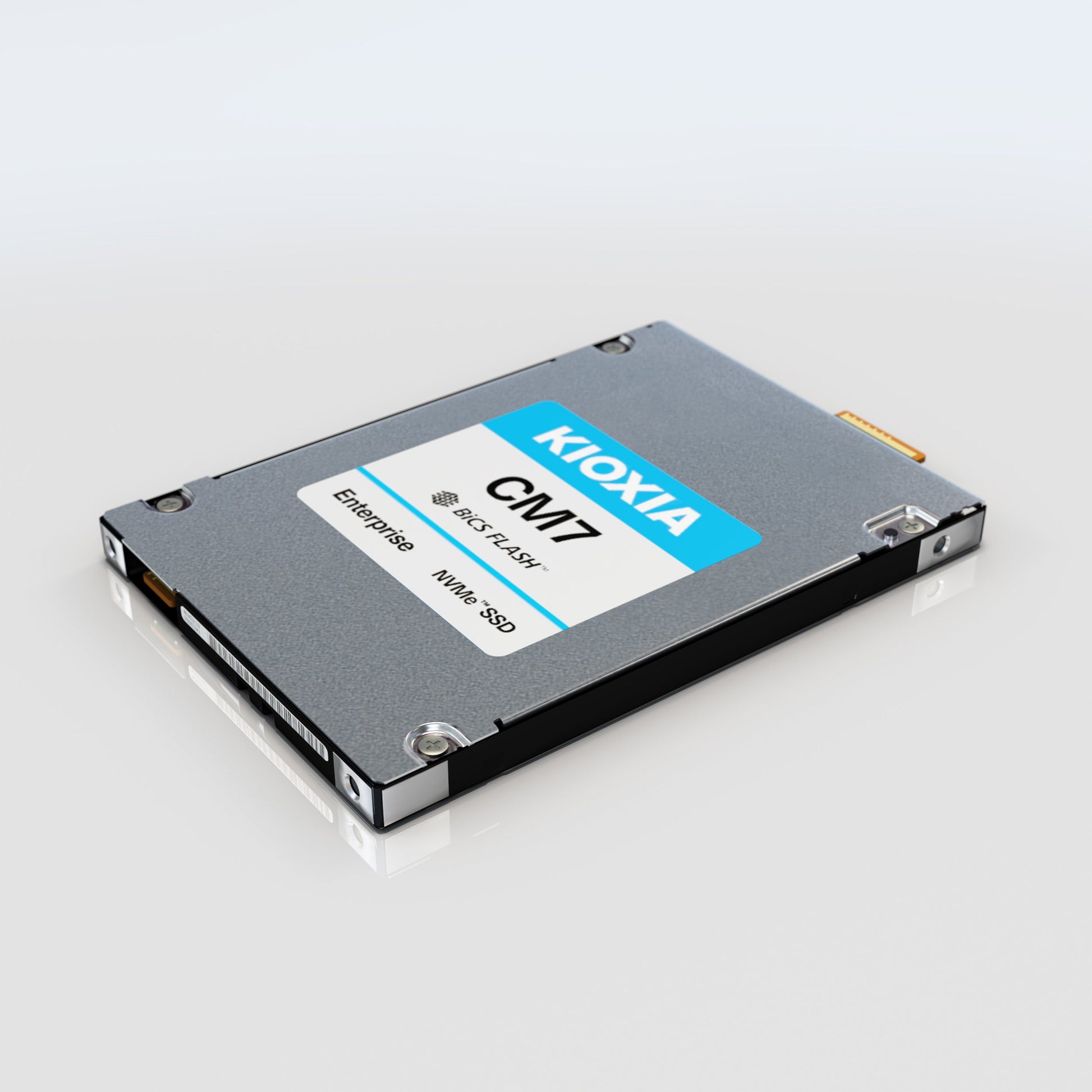

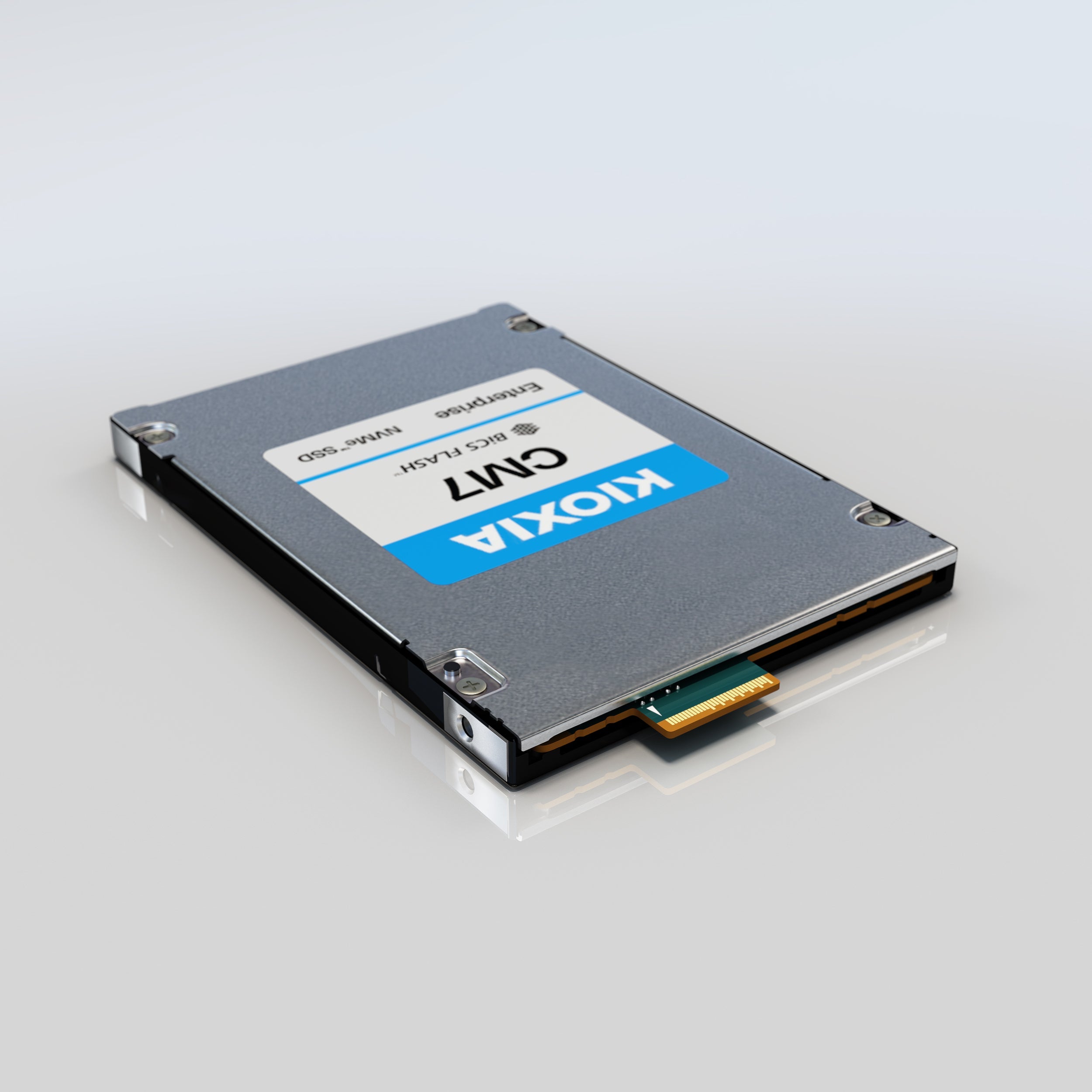

KIOXIA CM7-R (E3.S) - 1.92TB Read Intensive 1 DWPD PCIe 5.0 SSD
Discover the KIOXIA CM7-R Series 1.92TB SSD, an efficient enterprise SSD for data centers. Equipped with PCIe 5.0 and 112-layer BiCS FLASH TLC, this 7.5mm E3.S NVMe SSD provides up to 14,000 MB/s sequential read and 3,500 MB/s sequential write speeds, with 1 DWPD endurance and power loss protection (PLP). Ideal for virtualised environments and enterprise storage, it supports Open Compute Project compatibility and offers Base, SIE, SED, or FIPS SED security options.
KIOXIA /
1.92TB SSDCM7-R-SeriesData CentreE3.SNVMe SSDOpen Compute ProjectPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CM7-R (E3.S) - 1.92TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 14,000 MB/s |
| Sustained 128 KiB Sequential Write | 3,500 MB/s |
| Sustained 4 KiB Random Read | 2,000K IOPS |
| Sustained 4 KiB Random Write | 155K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15% |
| Power Consumption (Active) | 21 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 112.75 mm ± 0.4 mm |
| Weight | 110 g Max |
Environmental
| Temperature (Operating) | 0 °C to 76 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
