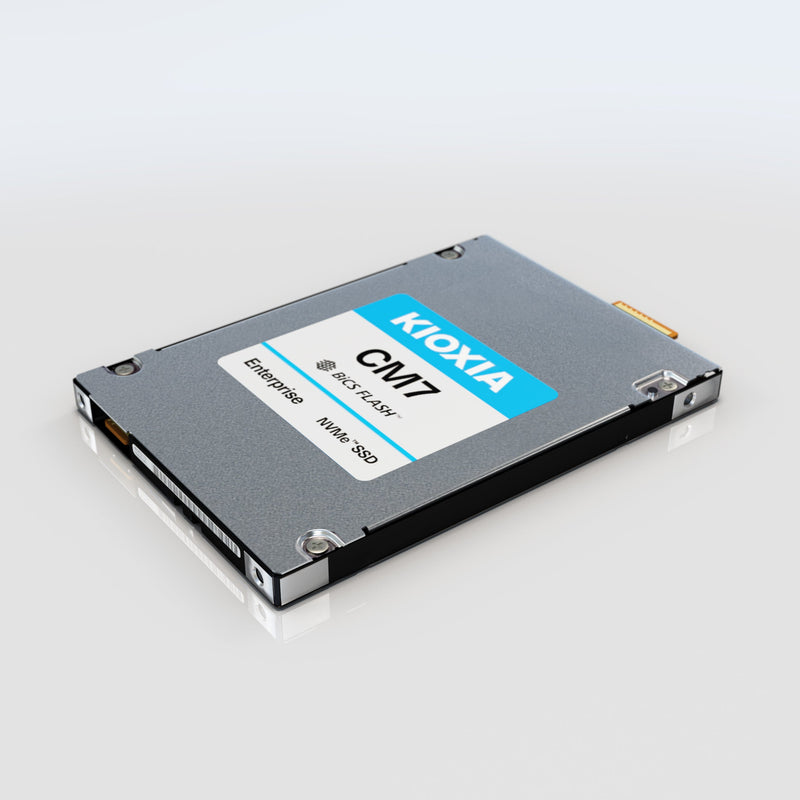

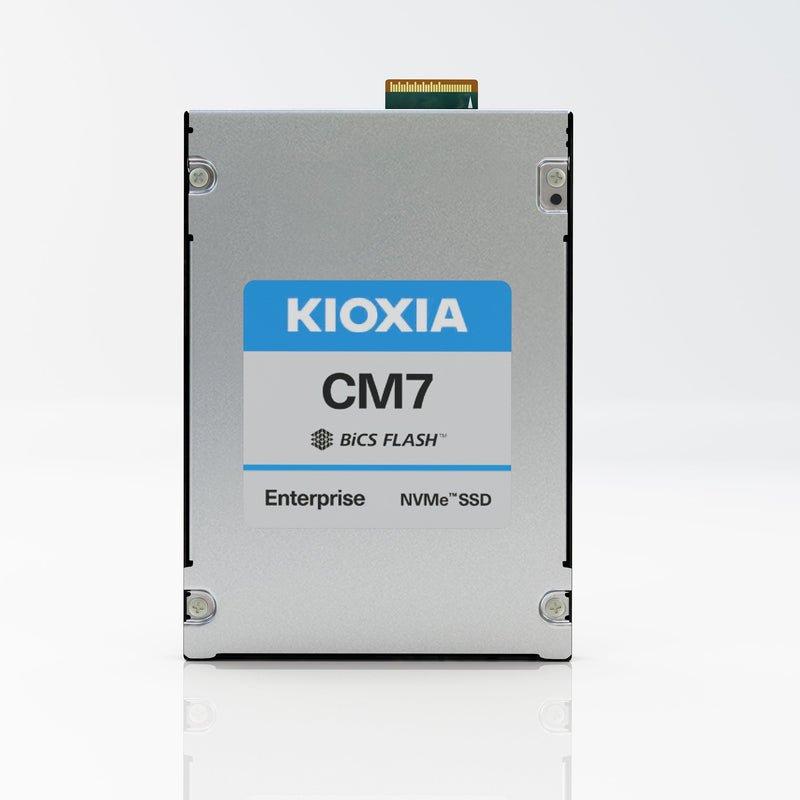

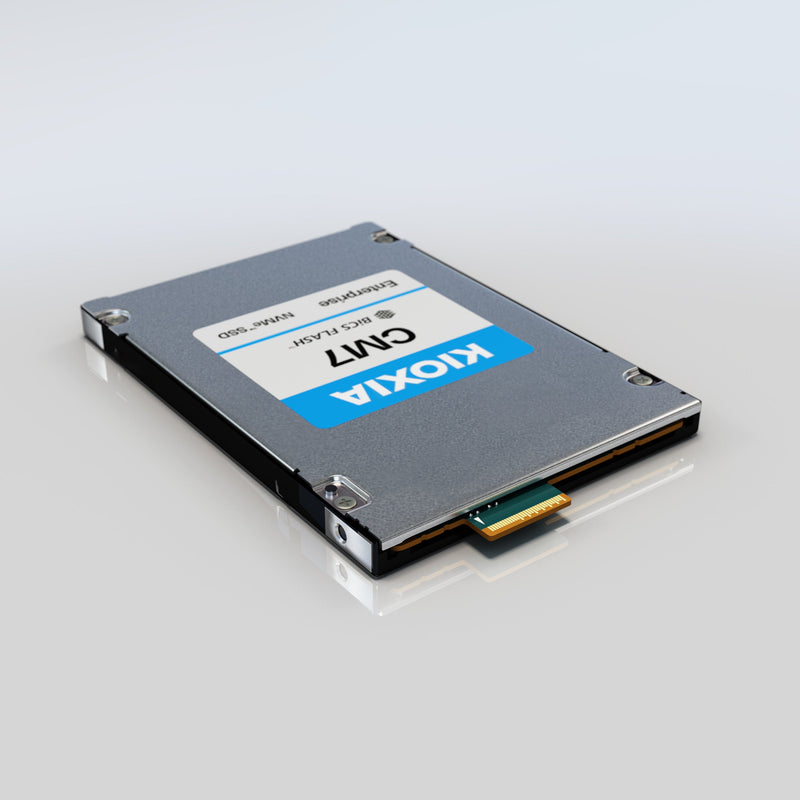

KIOXIA CM7-R (E3.S) - 15.36TB Read Intensive 1 DWPD PCIe 5.0 SSD
Experience the KIOXIA CM7-R Series 15.36TB SSD, a top-tier enterprise SSD built for large-scale data centers. Powered by PCIe 5.0 and 112-layer BiCS FLASH TLC, this 7.5mm E3.S NVMe SSD achieves up to 13,000 MB/s sequential read and 5,300 MB/s sequential write speeds, with 1 DWPD endurance and power loss protection (PLP). Perfect for cloud computing and enterprise storage, it adheres to Open Compute Project standards and includes Base, SIE, SED, or FIPS SED security options.
KIOXIA /
15.36TB SSDCM7-R-SeriesData CentreE3.SNVMe SSDOpen Compute ProjectPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CM7-R (E3.S) - 15.36TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 13,000 MB/s |
| Sustained 128 KiB Sequential Write | 5,300 MB/s |
| Sustained 4 KiB Random Read | 2,000K IOPS |
| Sustained 4 KiB Random Write | 260K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15% |
| Power Consumption (Active) | 25 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 112.75 mm ± 0.4 mm |
| Weight | 110 g Max |
Environmental
| Temperature (Operating) | 0 °C to 73 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
