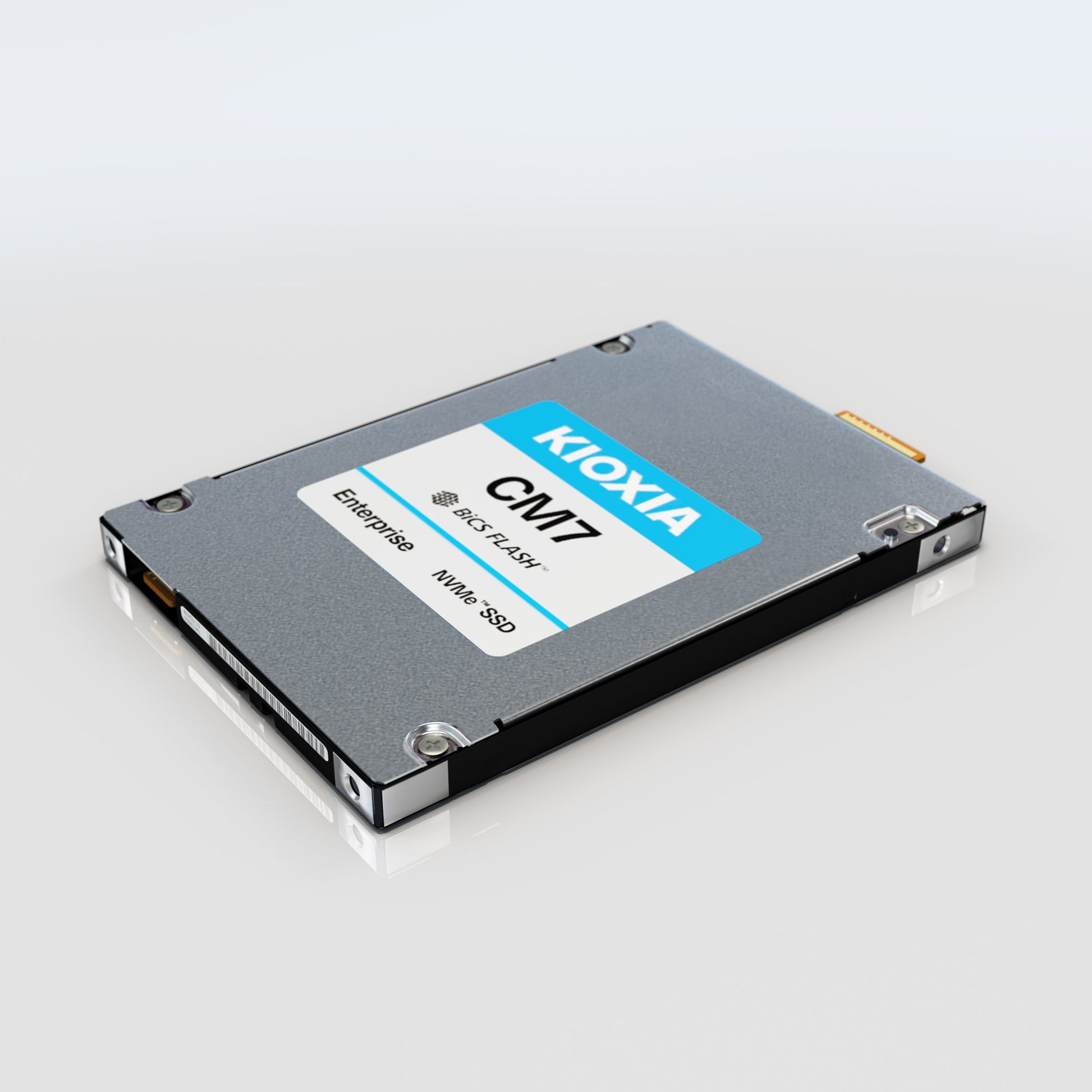

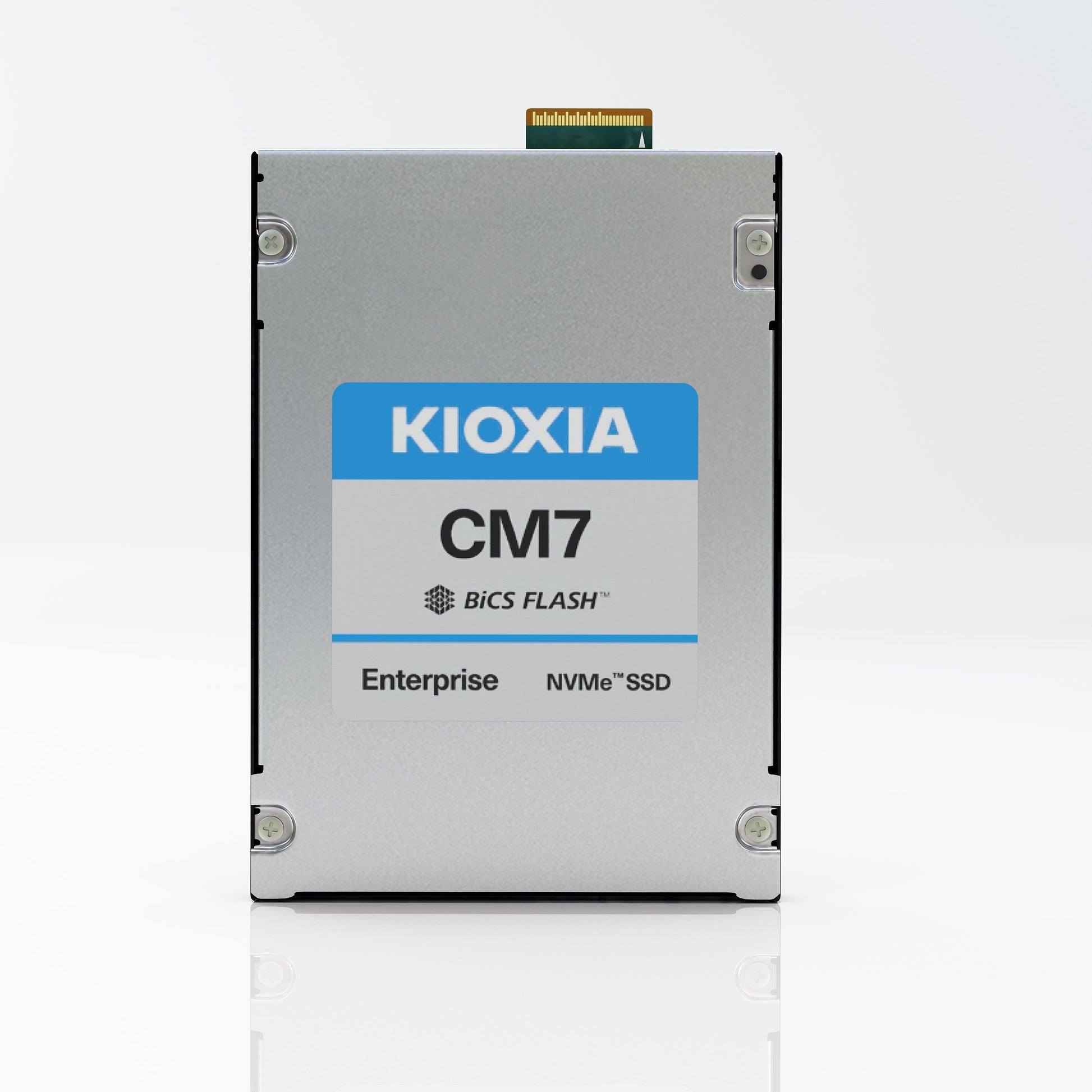

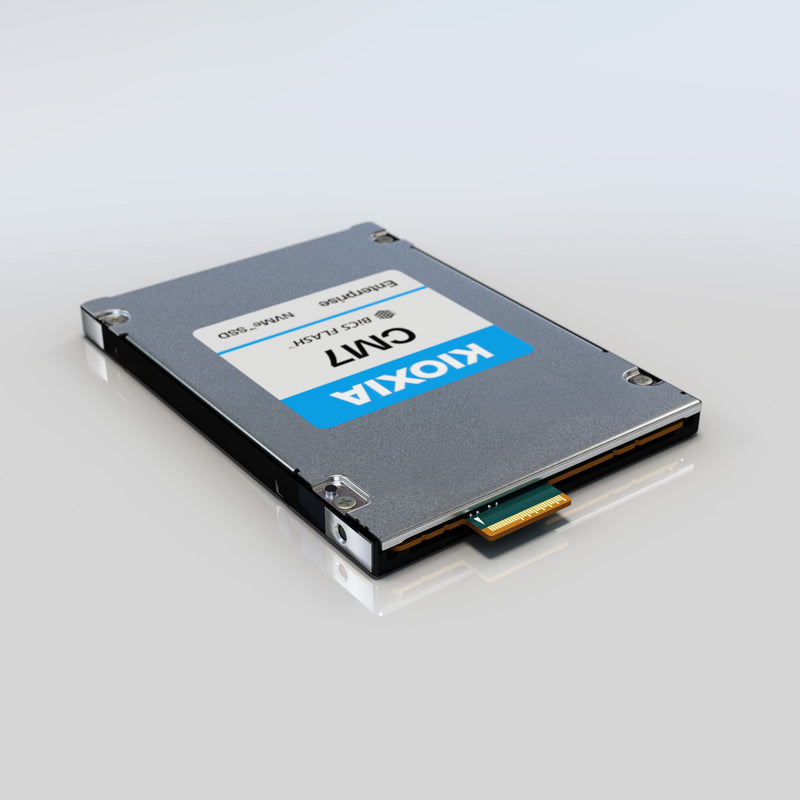

KIOXIA CM7-R (E3.S) - 7.68TB Read Intensive 1 DWPD PCIe 5.0 SSD
Unleash the power of the KIOXIA CM7-R Series 7.68TB SSD, an enterprise-grade NVMe SSD optimised for high-density data centers. utilising PCIe 5.0 and 112-layer BiCS FLASH TLC, this 7.5mm E3.S SSD delivers up to 14,000 MB/s sequential read and 6,750 MB/s sequential write speeds, with 1 DWPD endurance and power loss protection (PLP). Ideal for streaming media and enterprise storage, it supports Open Compute Project compatibility and offers Base, SIE, SED, or FIPS SED security options.
KIOXIA /
7.68TB SSDCM7-R-SeriesData CentreE3.SNVMe SSDOpen Compute ProjectPCIe 5.0Read Intensive
In Stock
Product Specification for KIOXIA CM7-R (E3.S) - 7.68TB Read Intensive 1 DWPD PCIe 5.0 SSD
Performance in Single Port (1x4) Mode (Up To)
| Sustained 128 KiB Sequential Read | 14,000 MB/s |
| Sustained 128 KiB Sequential Write | 6,750 MB/s |
| Sustained 4 KiB Random Read | 2,450K IOPS |
| Sustained 4 KiB Random Write | 300K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15% |
| Power Consumption (Active) | 24 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 112.75 mm ± 0.4 mm |
| Weight | 110 g Max |
Environmental
| Temperature (Operating) | 0 °C to 73 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 Grms) (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
