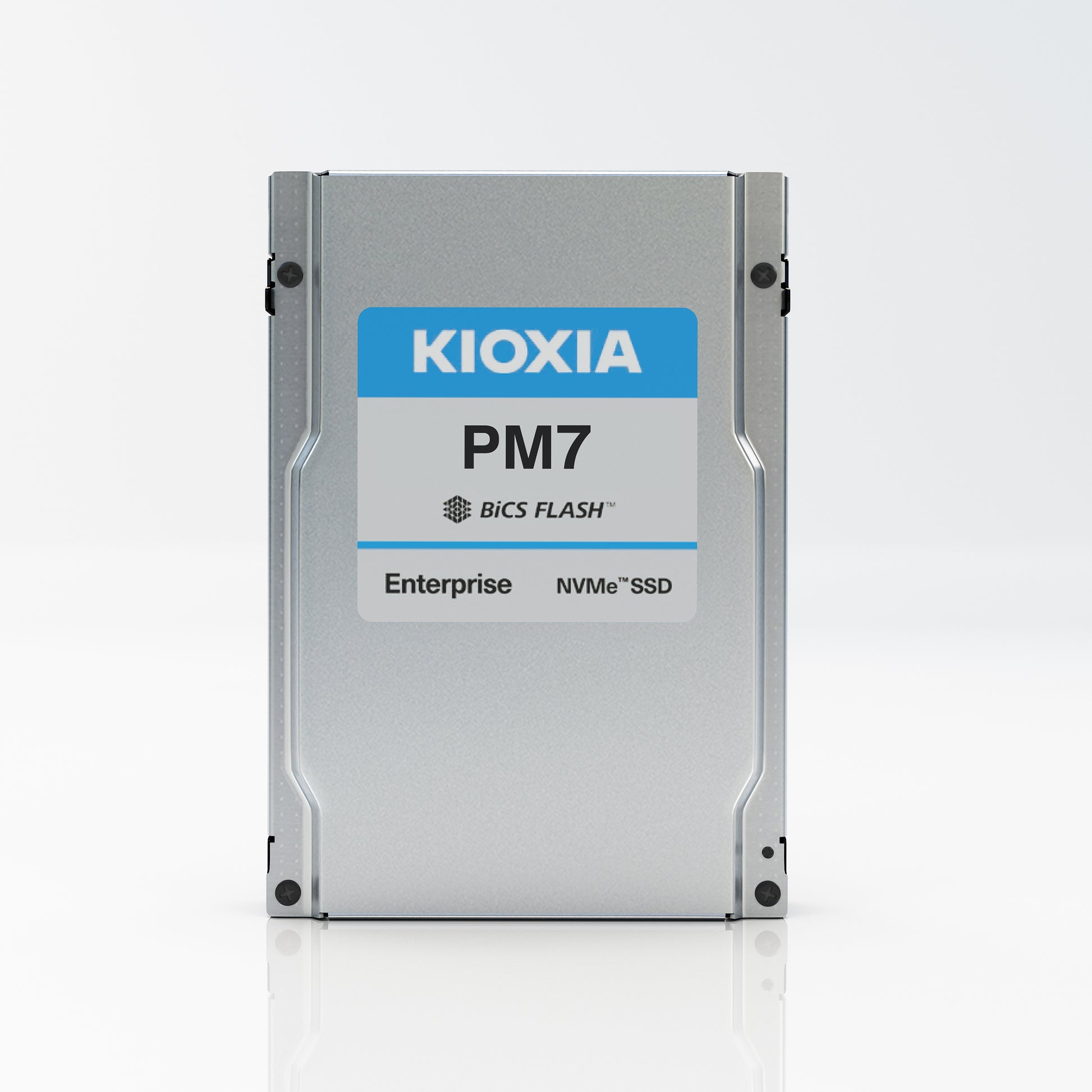

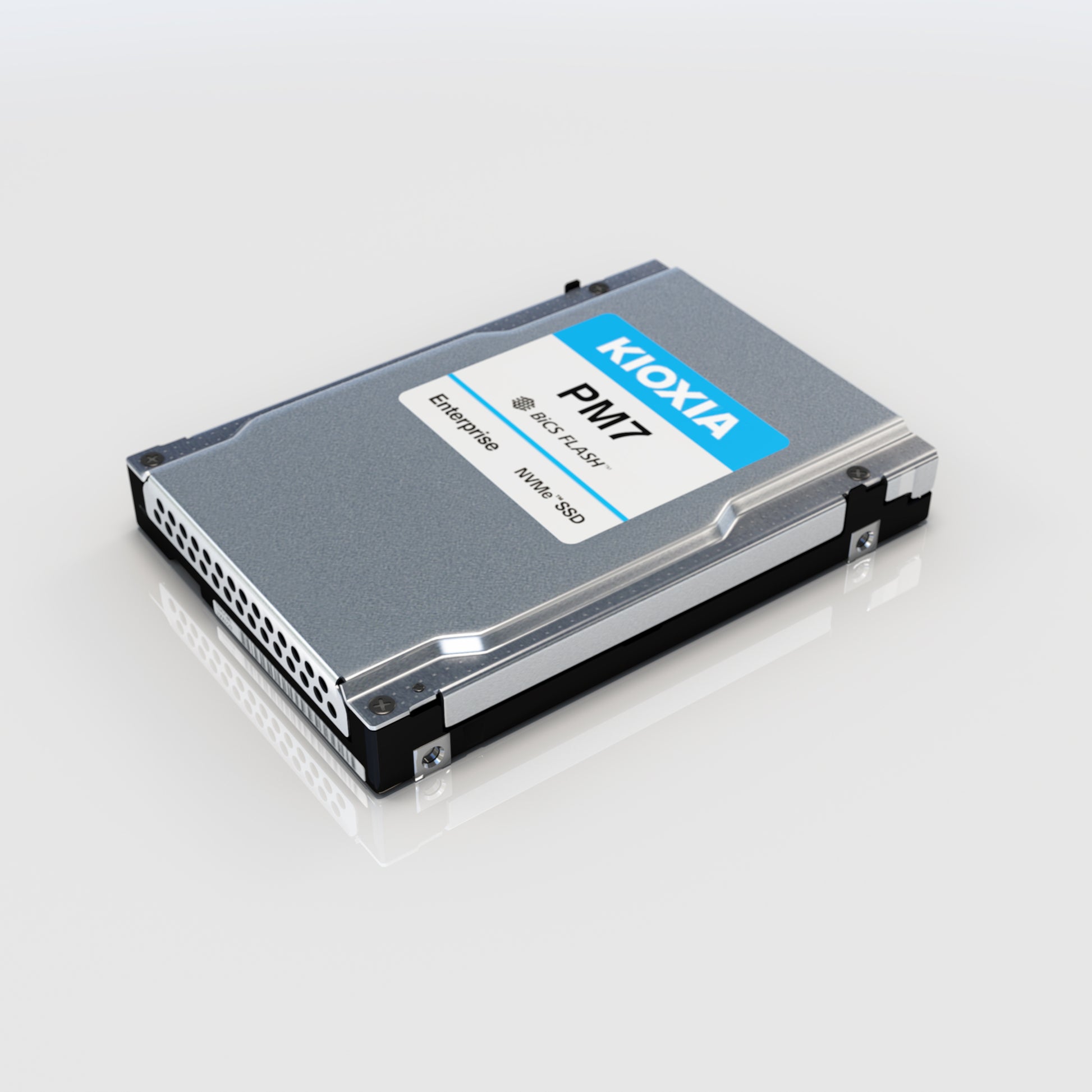

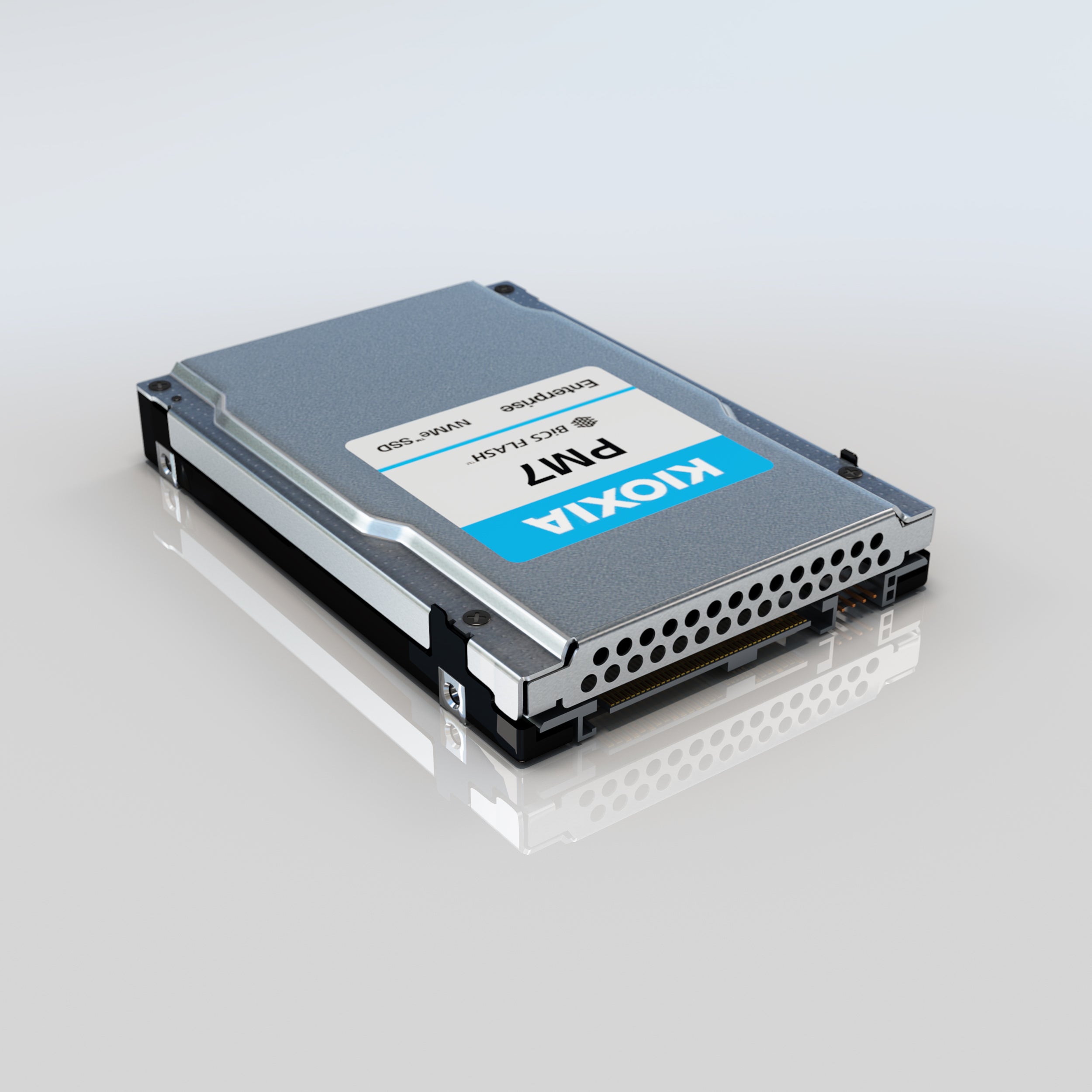

KIOXIA PM7-R (2.5") - 30.72TB Read Intensive 1 DWPD SAS-4 SSD
Ultra-Large-Scale SAS SSD
2.5" (15mm)
KIOXIA
Maximise storage with the KIOXIA PM7-R Series 30.72TB SSD, a robust enterprise SAS SSD for ultra-large-scale data centers. Featuring a 24G SAS-4 interface and 112-layer BiCS FLASH TLC, this 15mm 2.5" SSD delivers up to 4,200 MB/s sequential read and 4,100 MB/s sequential write speeds, with 1 DWPD endurance and power loss protection (PLP). Perfect for massive cloud deployments and enterprise storage, it offers Base, SIE, SED, or FIPS SED security options.
In Stock
£3,503.46
Ex. VAT
Product Specification for KIOXIA PM7-R (2.5") - 30.72TB Read Intensive 1 DWPD SAS-4 SSD
Performance in Dual-Port Mode (Up To)
| Sustained 128 KiB Sequential Read | 4,150 MB/s |
| Sustained 128 KiB Sequential Write | 3,200 MB/s |
| Sustained 4 KiB Random Read | 720K IOPS |
| Sustained 4 KiB Random Write | 80K IOPS |
Power Requirements
| Supply Voltage | 5 V + 10 % / -7 %, 12 V ± 10 % |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Height | 15.0 mm + 0, -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
Environmental
| Temperature (Operating) | 0 °C to 70 °C |
| Humidity (Operating) | 5 % R.H. to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² (2.17 G) (Peak, 5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s² (1,000 G) (Peak, 0.5 ms) |
PRODUCT HIGHLIGHTS
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
