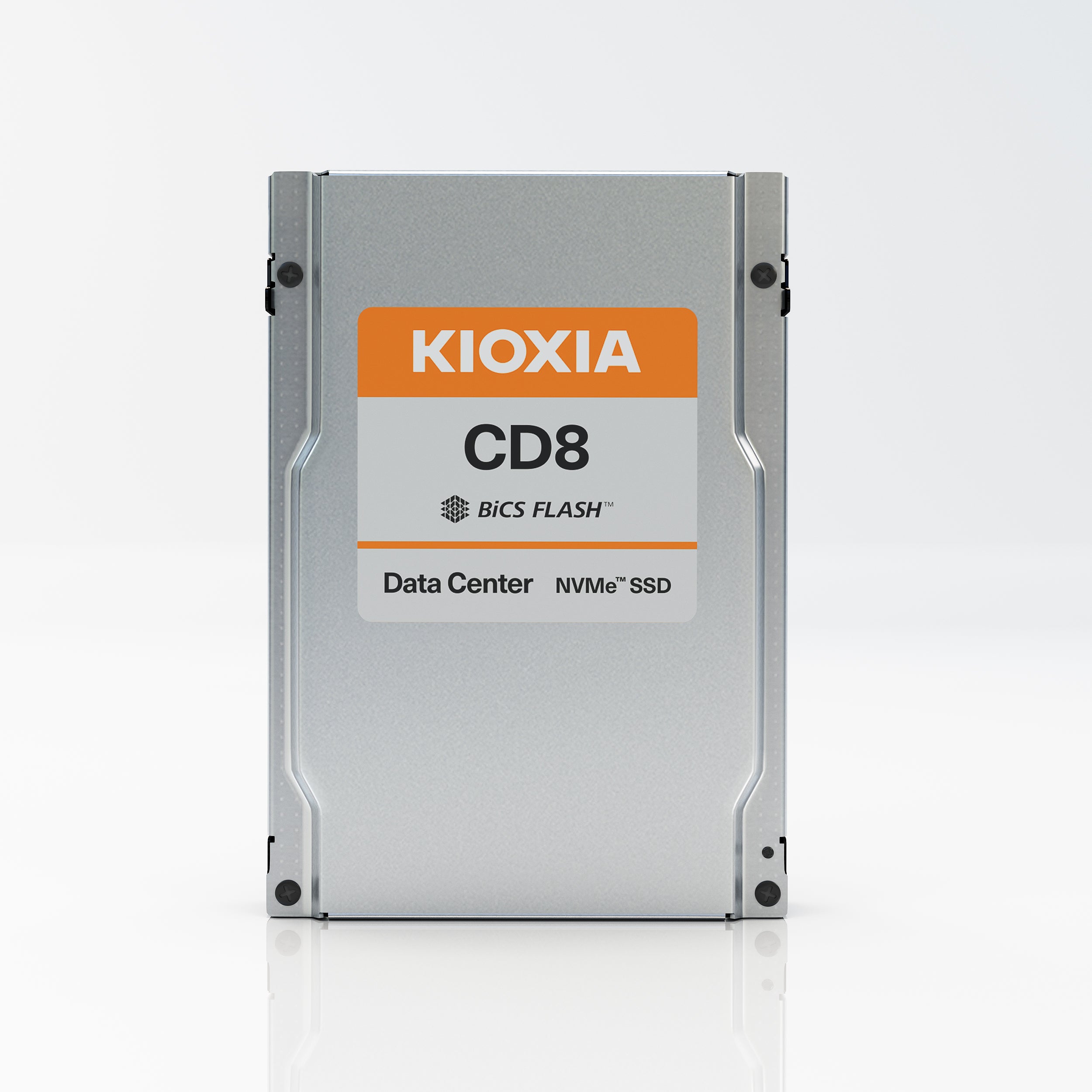

KIOXIA CD8-R

Scale your cloud with the KIOXIA CD8-R 15.36TB SSD, built for big data!
KIOXIA /
We won't be beaten on price. Request a quote.
In Stock
View Product Brochure
Capacity 0.96 TB 1.92 TB 3.84 TB 7.68 TB 15.36 TB
Basic Specifications
Form Factor U.3 (2.5-inch) 15mm
Interface PCIe 4.0x4 (NVMe 1.4)
Flash Memory Type 112-layer BiCS FLASH TLC 3D NAND
Endurance Rating Standard - 1 DWPD
Performance (Up To)
Sequential Read (128 KiB) 7,200 MB/s 7,100 MB/s 6,600 MB/s
Sequential Write (128 KiB) 1,800 MB/s 3,500 MB/s 3,800 MB/s 6,000 MB/s
Random Read (4K) 1,000K IOPS 1,250K IOPS 1,150K IOPS 1,050K IOPS
Random Write (4K) 80K IOPS 150K IOPS 195K IOPS 200K IOPS
Power Requirements
Power Loss Protection Yes
Supply Voltage 12 V ±10%, 3.3 V ±15%
Max Average Active Power 11 W (typ.) 13 W (typ.) 14 W (typ.) 19 W (typ.) 20 W (typ.)
Idle Power 5 W (typ.)
Reliability / Endurance
DWPD (5-year) 1.0
Warranty 5 years
MTBF 2,500,000 hours
Dimensions
Form Factor U.3 (2.5-inch)
Thickness 15 mm
Width 69.85 mm ± 0.25 mm
Length 100.45 mm (max)
Weight 130 g (max)
Environmental
Temperature (Operating) 0 °C to 75 °C
Temperature (Non-operating) -40 °C to 85 °C
Security & Management
NVMe Specification NVMe v1.4
OCP Compliance OCP Datacenter NVMe SSD Spec v2.0 (partial support)
Encryption SIE / SED options (TCG Opal & Ruby SSCs)

More Information

Optimise enterprise efficiency with the KIOXIA CD8-R Series Enterprise NVMe SSD, engineered for read-intensive workloads across modern data centres. Available in capacities from 0.96 TB to 15.36 TB, the CD8-R Series delivers high performance, reliability, and power efficiency for large-scale deployments and hyperscale applications.

Powered by PCIe 4.0 and 112-layer BiCS FLASH‚ TLC NAND, these 15 mm 2.5‚ drives achieve up to 7,200 MB/s sequential read and 1,250 K IOPS random read performance. With 1 DWPD endurance and integrated Power Loss Protection (PLP), the CD8-R Series ensures consistent throughput and reliability for sustained enterprise operations.

Designed for cloud deployments, streaming media, IoT infrastructure, and virtualised environments, it provides secure data handling with Base, SIE (Sanitise Instant Erase), and SED (Self-Encrypting Drive) security options. Combining speed, endurance, and efficiency, the CD8-R Series is the ideal read-optimised NVMe SSD for next-generation enterprise storage solutions.

PRODUCT HIGHLIGHTS

Fast, efficient, and reliable performance.

Ultra-Fast PCIe® 5.0 Speeds

Enjoy faster data transfer and system responsiveness.

Lower Power, High Efficiency

Delivers strong performance with reduced energy use.

24x7 Enterprise Reliability

Built to withstand constant, demanding workload environments.
