KIOXIA XD7P (E1.S) - 7.68TB Data Center 1 DWPD PCIe 5.0 SSD

Optimise your hyperscale data centre with the KIOXIA XD7P 7.68TB SSD, delivering exceptional E1.S performance for cloud and hyperscale applications.

KIOXIA /

1.92 TB 3.84 TB 7.68 TB

E1.S (9.5mm) E1.S (15mm)

Base SED

Product variants:

We won't be beaten on price. Request a quote.

Capacity

1.92 TB

3.84 TB

7.68 TB

Basic Specifications

Form Factor

E1.S (9.5 mm)

Interface

PCIe 5.0, NVMe 2.0 (64 GT/s, Gen4x4 compatible)

Flash Memory Type

BiCS FLASH TLC (Gen 5)

Endurance Rating

1 DWPD (5 years)

Performance (Up To)

Sequential Read

7,200 MB/s

Sequential Write

3,100 MB/s

4,800 MB/s

Random Read (4K)

1,500K IOPS

1,650K IOPS

Random Write (4K)

95K IOPS

180K IOPS

200K IOPS

Power Requirements

Power Loss Protection

Yes

Supply Voltage

12 V ±10%

Active Power (Typical)

16 W

20 W

Ready Power

5 W (typical)

Reliability / Endurance

DWPD (5-year)

1.0

MTTF

2,000,000 hours

Warranty

5 years

Dimensions

Form Factor

E1.S (EDSFF)

Thickness

9.5 mm ±0.35 mm

Width

33.75 mm ±0.25 mm

Length

118.75 mm ±0.55 mm

Weight

75 g Max

Environmental

Temperature (Operating)

0 °C to 75 °C

Temperature (Non-operating)

-40 °C to 85 °C

Humidity (Operating)

5% to 95% R.H.

Vibration (Operating)

12 m/s² {1.24 Grms} (2–500 Hz)

Shock (Operating)

6,864 m/s² {700 G} (0.5 ms)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.0 (support)

Encryption

TCG Opal SSC (SED optional)

Capacity

1.92 TB

3.84 TB

7.68 TB

Basic Specifications

Form Factor

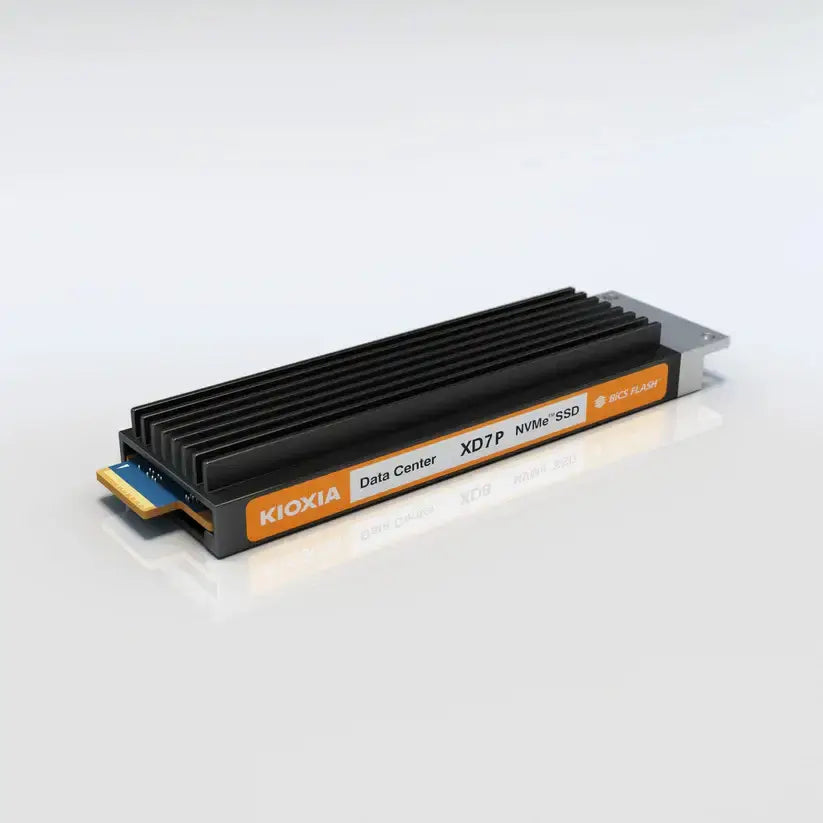

E1.S (15 mm)

Interface

PCIe 5.0, NVMe 2.0 (64 GT/s, Gen4x4 compatible)

Flash Memory Type

BiCS FLASH TLC (Gen 5)

Endurance Rating

1 DWPD (5 years)

Performance (Up To)

Sequential Read

7,200 MB/s

Sequential Write

3,100 MB/s

4,800 MB/s

Random Read (4K)

1,500K IOPS

1,650K IOPS

Random Write (4K)

95K IOPS

180K IOPS

200K IOPS

Power Requirements

Power Loss Protection

Yes

Supply Voltage

12 V ±10%

Active Power (Typical)

16 W

20 W

Ready Power

5 W (typical)

Reliability / Endurance

DWPD (5-year)

1.0

MTTF

2,000,000 hours

Warranty

5 years

Dimensions

Form Factor

E1.S (EDSFF)

Thickness

15 mm +0.35 / -0.60 mm

Width

33.75 mm ±0.25 mm

Length

118.75 mm ±0.55 mm

Weight

90 g Max

Environmental

Temperature (Operating)

0 °C to 75 °C

Temperature (Non-operating)

-40 °C to 85 °C

Humidity (Operating)

5% to 95% R.H.

Vibration (Operating)

12 m/s² {1.24 Grms} (2–500 Hz)

Shock (Operating)

6,864 m/s² {700 G} (0.5 ms)

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD Spec v2.0 (support)

Encryption

TCG Opal SSC (SED optional)

More Information

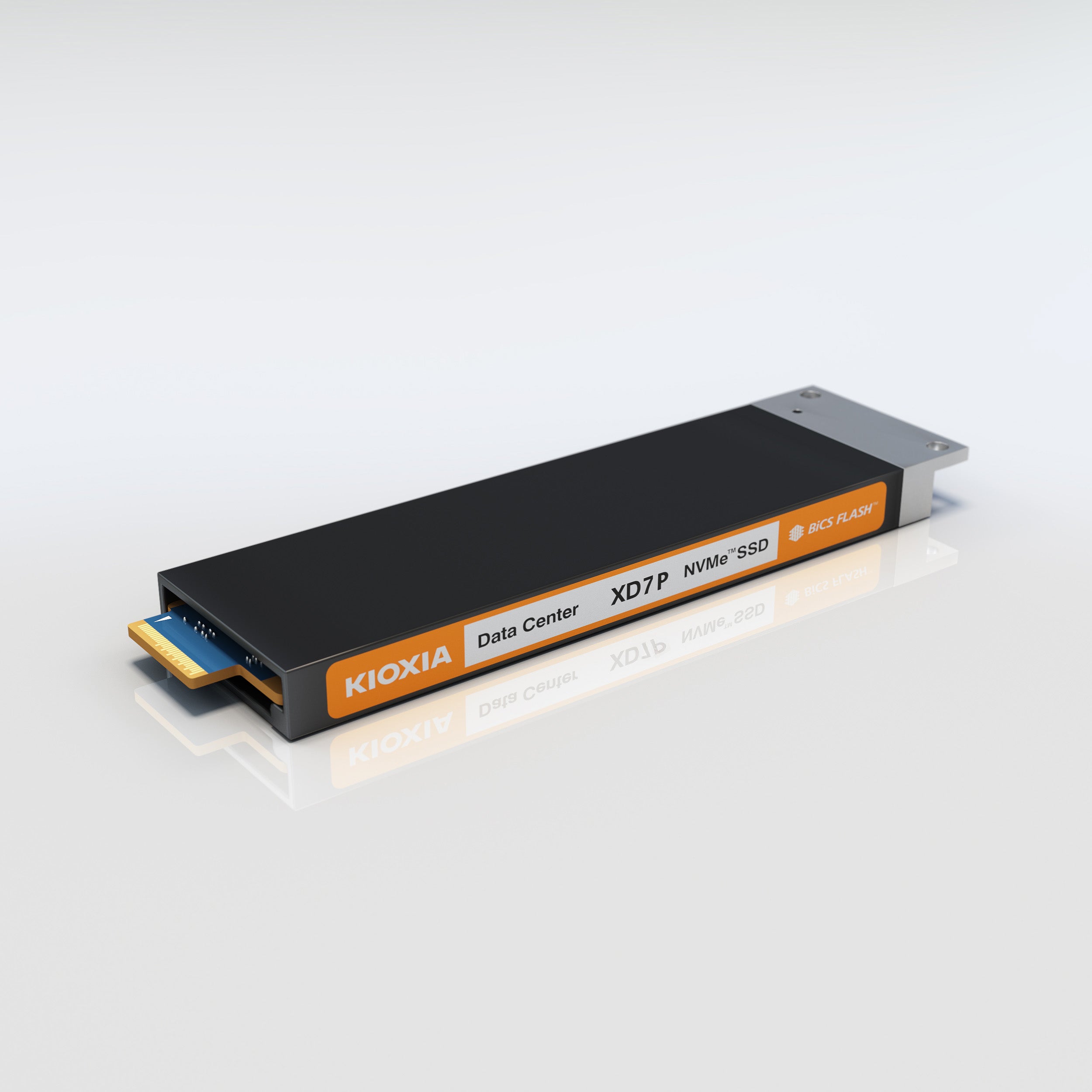

Empower your hyperscale infrastructure with the KIOXIA XD7P Series Enterprise NVMe SSD, purpose-built for next-generation data centres. Available in 1.92 TB, 3.84 TB, and 7.68 TB capacities, the XD7P Series combines exceptional efficiency and reliability in a compact E1.S 9.5 mm form factor for high-density server deployments.

Powered by PCIe 5.0 and NVMe 2.0 with 112-layer BiCS FLASH™ TLC NAND, these drives deliver up to 7,200 MB/s sequential read and 4,800 MB/s sequential write performance, reaching 1,650 K IOPS random read. With 1 DWPD endurance and integrated Self-Encrypting Drive (SED) security, the XD7P Series is engineered for sustained performance and data protection under heavy enterprise workloads.

Designed for big data analytics, IoT applications, online transaction processing (OLTP), and virtualised environments, the XD7P Series meets Open Compute Project (OCP) data centre compliance standards, ensuring maximum efficiency and uptime for continuous hyperscale operations.
