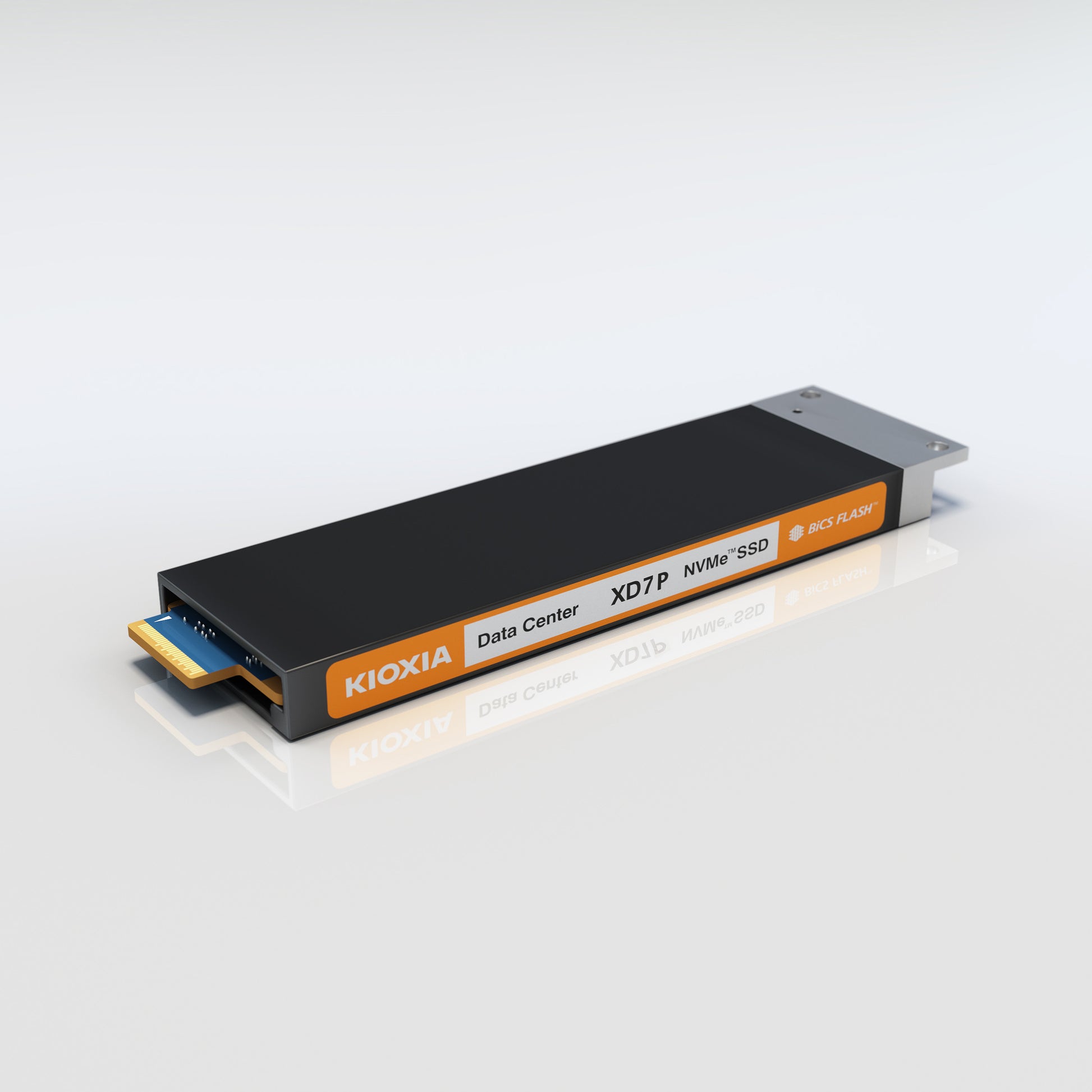

KIOXIA XD7P (E1.S 9.5mm) - 1.92TB Data Centre 1 DWPD PCIe 5.0 SSD
Transform your data center with the KIOXIA XD7P Series 1.92TB SSD, a high-capacity data center NVMe SSD designed for hyperscale applications. Driven by PCIe 5.0 and NVMe 2.0 with 112-layer BiCS FLASH TLC, this E1.S 9.5mm SSD achieves up to 7,200 MB/s sequential read speeds and delivers up to 1,650K IOPS random read performance. Offering 1 DWPD endurance and Self-Encrypting Drive (SED) protection, it enhances big data/IoT, online transaction processing, and virtualisation. Open Compute Project (OCP) datacenter compliance supports high availability for continuous hyperscale operations.
Product Specification for KIOXIA XD7P (E1.S 9.5mm) - 1.92TB Data Centre 1 DWPD PCIe 5.0 SSD
Performance (Up To)
| Sustained 128 KiB Sequential Read | 7,200 MB/s |
| Sustained 128 KiB Sequential Write | 3,100 MB/s |
| Sustained 4 KiB Random Read | 1,500K IOPS |
| Sustained 4 KiB Random Write | 95K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 % |
| Power Consumption (Active) | 16 W typ. |
| Power Consumption (Ready) | 5 W typ. |
Reliability
| MTTF | 2,000,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 9.5 mm ± 0.35 mm |
| Width | 33.75 mm ± 0.25 mm |
| Length | 118.75 mm ± 0.55 mm |
| Weight | 75 g Max |
Environmental
| Temperature (Operating) | 0 °C to 75 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 12 m/s² ( 1.24 Grms ) ( 2 to 500 Hz ) |
| Shock (Operating) | 6,864 m/s² ( 700 G ) ( 0.5 ms ) |
Fast, efficient, and reliable performance.
Ultra-Fast PCIe® 5.0 Speeds
Enjoy faster data transfer and system responsiveness.
Lower Power, High Efficiency
Delivers strong performance with reduced energy use.
24x7 Enterprise Reliability
Built to withstand constant, demanding workload environments.
